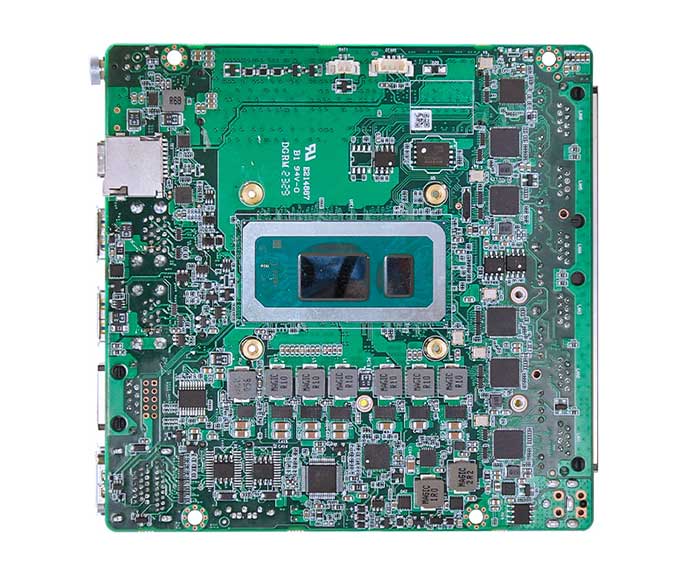

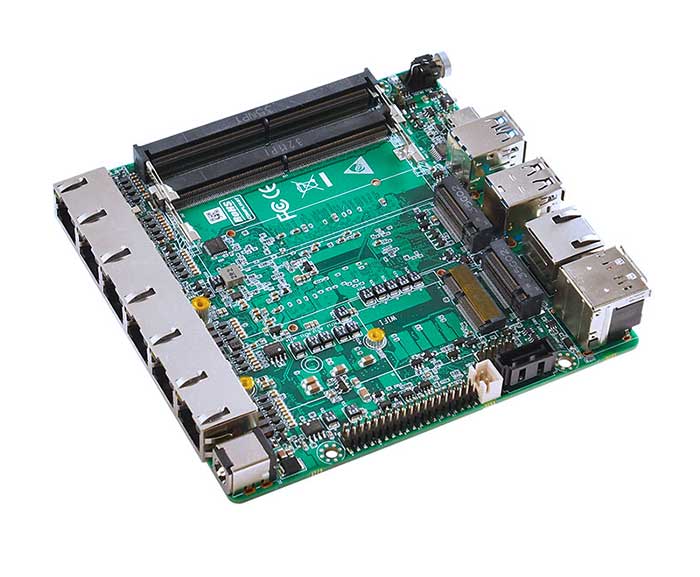

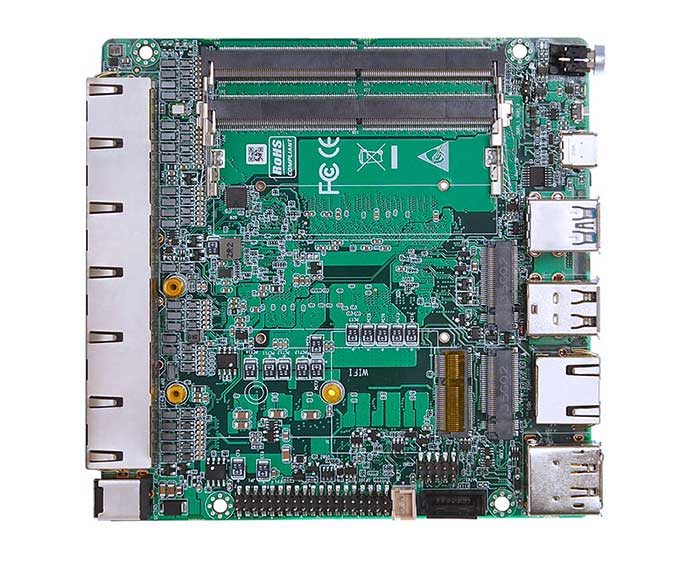

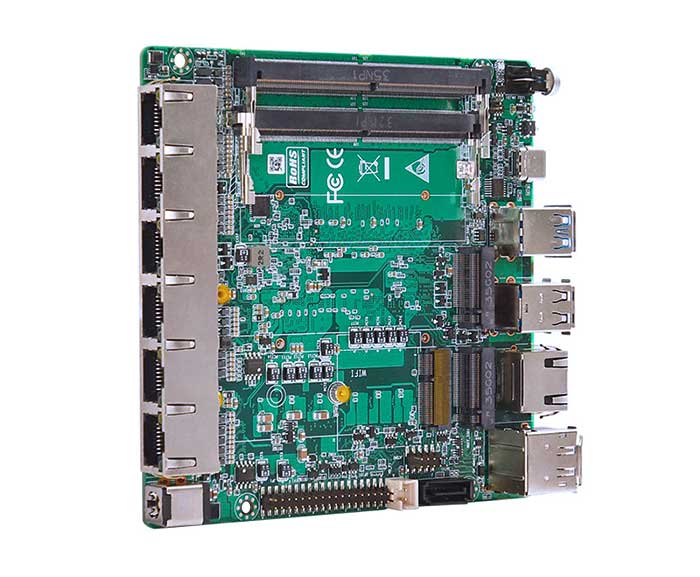

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

Model : AD600NA6L

Description :
?Onboard Intel 12th/13th-U/-P serial processor
?2*DDR5 SO-DIMM,max support 64GB
?6*2.5G lan port(5*Intel i226-V,1*RTL8156B)
?TPM2.0,2*M.2 2280 SSD,M.2 WIFI
?1*HDMI2.0,1*DP,Type-C(USB3.0+DP)
?DC 12-19V;Size:120x120mm

  • Product details
  • Specification parameter
  • File download

Processor System



Onboard Intel 12th/13th-U/-P series processor, TDP 35W



EFI BIOS

Memory

2*DDR5 SO-DIMM, total max 64GB

Storage



2*M.2 M-Key 2280(NVMe PCIe 4.0 x4/SATA3.0 protocol), order notes



1*SATA3.0, 2Pin 5V power supply

Display





1*HDMI2.0, support 4096x2160@60Hz



1*DP, support 7680x4320@60Hz



1*Type-C port, support DP 7680x4320@60HzUSB3.2 Gen2

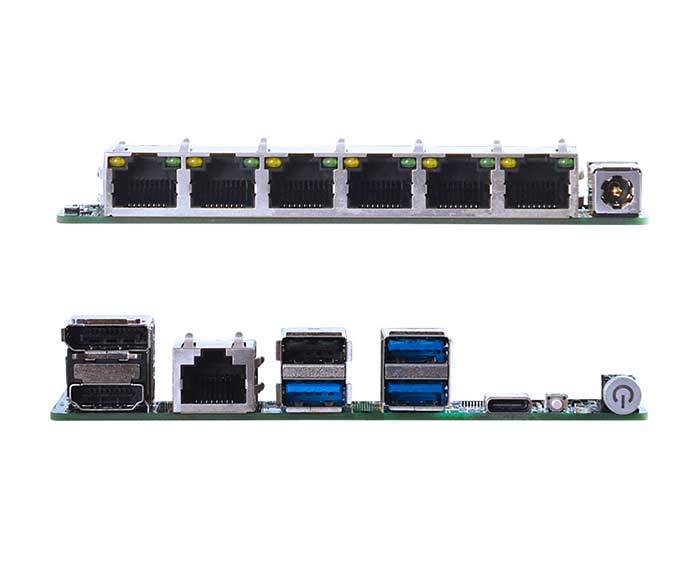

Board Side I/O Interface

Power on button, reset button, 3*USB3.0, 1*USB2.0



DC JACK, 1*HDMI, 1*DP, 1*Type-C (USB3.0+DP)



6*LAN, 1*Console (common LAY with RS232/485 pins), TF card

Expansion Interfaces/Features







External TPM2.0 is optional, not available by default. Default is CPU built-in TPM2.0



1*M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module)



1*RS232/RS485 (hardware loading and BIOS setting switching) row of pins, pitch 2.0mm



1*USB2.0 Pin, 2x5Pin, 2.0mm pitch; 8 bit GPIO Pin, 2.0mm pitch



1*4Pin PWM CPU FAN

Power Supply

DC 12-19V, 120W or above

Operating Environmen

Operating Temperature: -20℃ ~ +60℃; Operating Humidity: 5% ~ 90



Storage Temperature: -40℃ ~ +85℃; Storage Humidity: 5% ~ 90%

Operating System Support

Windows 10, Windows 11, Linux

Dimension

120x120 mm

Net Weight

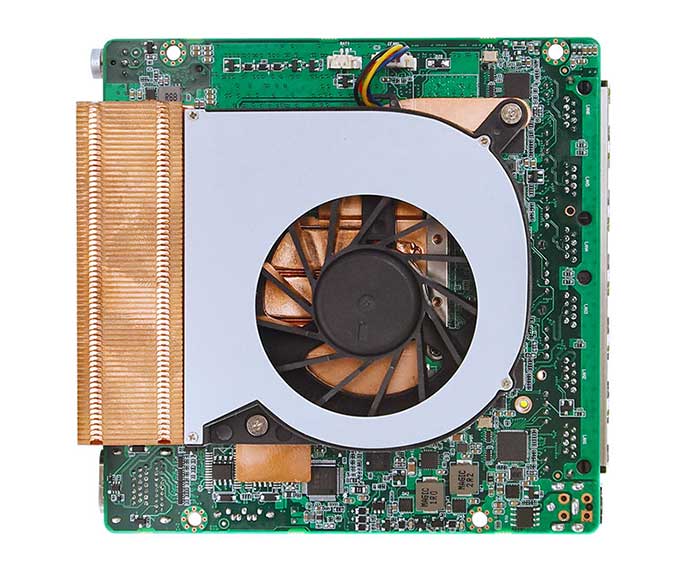

Approx. 130g without heat sink, 250g with heat sink

+
